LEDs are everywhere, and their performance mainly depends on wavelength. It controls the color, energy, and how the light is used in practical applications. In this article lets discuss about LED wavelength, color behavior, measurement, applications, and future trends.

Catalog

Understanding LED Wavelength

LED wavelength is the property that determines the color, energy, visibility, and application of light emitted by a light-emitting diode. It is measured in nanometers (nm) and represents the peak output of the LED. Wavelength also influences how the emitted light interacts with materials, sensors, and the human eye.

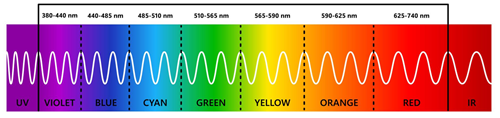

LED wavelengths are grouped into three main ranges:

Ultraviolet (UV): below 400 nm (invisible)

Used in sterilization and curing

Visible light: 400 to 700 nm

Used in lighting, displays, and indicators

Infrared (IR): above 700 nm (invisible)

Used in sensing, communication, and remote controls

How Wavelength Affects Color

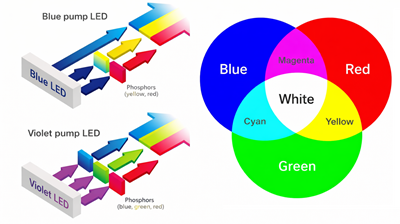

Figure 2. White Light from LED Mixing and Phosphor Conversion

LED color is determined by wavelength, which is linked to energy. Higher energy produces shorter wavelengths (blue/violet), while lower energy produces longer wavelengths (red/orange).

Color and wavelength ranges

Color	Wavelength (nm)
Red	610–700
Orange	590–610
Yellow	575–595
Green	495–570
Blue	450–490
Violet	380–410

Color transitions are gradual, so ranges may overlap.

White LEDs

White LEDs do not emit a single wavelength. They use a blue LED (around 450–460 nm) and a phosphor layer that converts part of the light into longer wavelengths, which combine to produce white light.

Main metrics:

CCT (Correlated Color Temperature) shows the overall color tone, CRI (Color Rendering Index) indicates how accurate colors appear, and SPD (Spectral Power Distribution) shows how wavelengths are distributed.

Energy and Wavelength Relationship

The wavelength depends on the semiconductor energy gap:

λ=1240/Eg

• λ = wavelength (nm)

• E₉ = bandgap energy (eV)

Higher energy results in shorter wavelengths.

Common LED Materials

• GaN / InGaN: blue, green

• AlGaInP: red, orange, yellow

• GaAs: infrared

Types of Wavelength Measurement

LED wavelength can be described in two ways depending on how it’s measured.

Peak wavelength: The point of highest intensity in the spectrum, based on physical measurement, and commonly used in sensors and optical systems.

Dominant wavelength: The perceived color seen by the human eye, based on visual response, and commonly used in displays and lighting.

Peak wavelength refers to the actual output, while dominant wavelength refers to the perceived color.

Wavelength Generation

LEDs produce light through electroluminescence.

• Electrons recombine with holes

• Energy released as photons

• Photon energy determines wavelength

Wavelength is controlled by semiconductor properties.

Measuring LED Wavelength

LED wavelength is measured using special optical tools designed to analyze light.

A spectrometer measures the light output and shows the peak wavelength. A spectroradiometer measures both wavelength and color performance. An integrating sphere is often used with these tools to improve accuracy by collecting all the light from the LED.

Some tools cannot measure wavelength. A multimeter and X-ray inspection are used for electrical and structural testing, not for analyzing light.

Measurement accuracy depends on proper conditions. Temperature, driving current, and the test setup can affect the results. Changes in these factors can shift wavelength and brightness, so they must be controlled for accurate measurement.

LED Applications by Wavelength

Visible LEDs

• General lighting (homes, buildings)

• Displays (phones, TVs, panels)

• Automotive lighting

• Indicators and signage

UV LEDs

• Sterilization and disinfection

• Curing (inks, coatings, adhesives)

• Fluorescence detection

Infrared LEDs

• Remote controls

• Motion and proximity sensors

• Night vision systems

• Optical communication

Color-based uses

• Red: alerts, brake lights

• Green: signals, indicators

• Blue: backlighting, white LED generation

• Violet: inspection, specialty uses

Infrared vs Red LEDs

Feature	Infrared LED	Red LED
Visibility	Invisible	Visible
Wavelength	>780 nm	620–700 nm
Function	Sensing/communication	Signaling
Applications	Remotes, sensors	Displays

Pros and Cons of LED Wavelength

Pros

• Precise color control

• Wide application range

• High spectral efficiency

• Strong compatibility with sensors

• Good color consistency (with proper design)

Cons

• Variation between production batches

• Temperature-related wavelength shifts

• Narrow spectral output per LED

• More complex design for precision systems

• Gradual color shift with aging

LED vs Laser Wavelength Characteristics

Feature	LEDs	Lasers
Wavelength	Broader range	Very narrow
Beam	Wide spread	Highly focused
Power density	Lower	High
Cost	Lower	Higher
Safety	Generally safer	Requires precautions
Applications	Lighting, displays	Precision, cutting

Future Trends in LED Wavelength Technology

LED technology continues to improve, especially in wavelength control.

Emerging developments include micro-LED displays with precise wavelength control, tunable LEDs that can adjust wavelength dynamically, advanced UV LEDs for healthcare and sterilization, and full-spectrum LEDs designed for better color rendering.

These advances will improve efficiency, accuracy, and flexibility across a wide range of applications.

Conclusion

LED wavelength affects how light is produced, seen, and used in different applications. It is an important factor in color, efficiency, and overall performance. Understanding it helps explain why LEDs are widely used and how they will continue to improve in the future.
